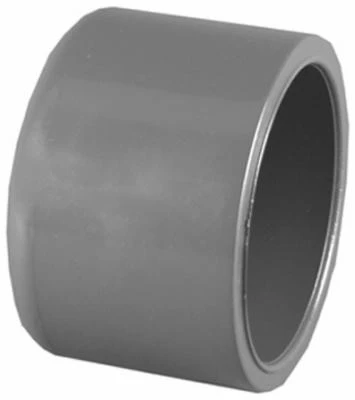

Schedule 80 Pvc Slip Cap, 2 In.

Pipe & fittings are dark gray in color. Joined with solvent cement conforming to ASTM D2564. PVC Schedule 80 pressure fittings with straight, angular turns must be used. Do NOT use fittings with gradual sanitary turns for pressure systems. Application: Distribution of pressurized Liquids. Can be used in industrial applications. NOT for compressed air or gasses. Standards: ASTM D1785, ASTM D2467, NSF Standard 14, NSF Standard 61. Dimensional Standard: Schedule 80 Iron Pipe Size (IPS). Cell Class: 12454 (Type 1). Material Code: PVC 1120. Max. Working Temp: 140F. For special applications, threaded connections, unions and flanges, a temperature de-rating factor must be used to determine the pressure rating at temperatures hotter than 73F. Joining Method: Solvent Weld Joints ? Solvent Cements must meet ASTM D2534. Primer should be IPS P-70 or Oatey Industrial Grade. May be flanged with Schedule 80 flanges. Threading PVC 80 pipe can be done. MIP and FIP adapters are available.

• 2 in.
• Solvent cemented fitting with a socket connection.
• Made of PVC.
• Maximum working temperature of 140 degrees Fahrenheit and a maximum working pressure of 400 psi.
• Underground rated and is compatible with PVC pipe.
• Non-potable water application.
• Schedule 80 cap.
• 2.844 inches in depth and weighs 0.307 pounds.
